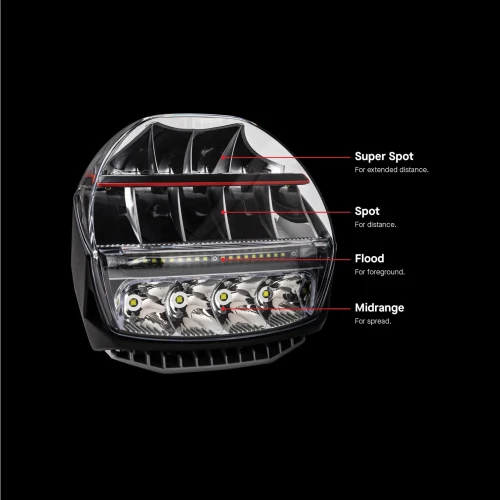

A unique 4-optic design (Super Spot, Spot, Flood and Midrange) is employed to provide virtually an unlimited choice of light beams to suit any road condition.
- The Super Spot and Spot optic, based on free-form reflector technology, produce an even spot beam for extended distance illumination.
- The Flood optic has a specially designed lens to maximise the light spread for excellent foreground visibility.
- The Midrange optic employs a conventional parabolic reflector to illuminate the midrange area.

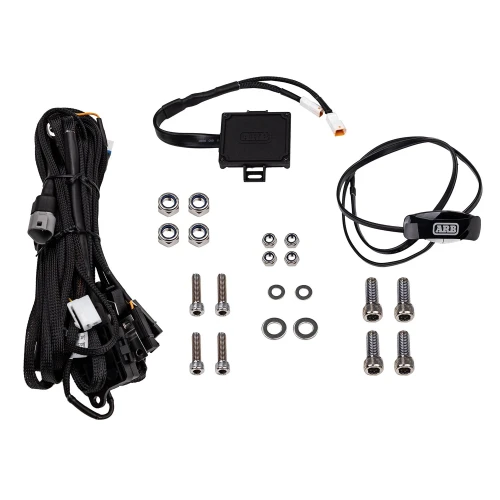

To accompany the revolutionary Intensity IQ light, ARB have developed a physical switch controller that is equally as intuitive.
Have access to up to eight different preset configurations at the click of a button, instantly changing the Intensity IQ to your needs. The Intensity IQ controller unlocks a world of possibilities when exploring, presenting premium easy to use tool that will give you choice at the click of a button.
The Intensity IQ control sports a design that is both ergonomic and practical, with users being able to feel and adjust rather than relying on seeing the device itself. The quick select buttons have a definitive edge and when mounted in a hidden position and in the correct orientation, allowing for a quick and easy selection with a positive switching feel.
TOTAL CONTROL IN THE PALM OF YOUR HANDS
Finding the right balance of lighting when tackling not only tracks, but also country roads can be challenging. ARB have taken this into account when designing the ARB Intensity IQ app, which allows users to control and set from the thousands of light combinations available with the ARB Intensity IQ lights- straight from your mobile device!
INTENSITY IQ SPECIFICATIONS
- Input: 11 - 32V
- Power: 170 W @ 13.2V
- Current Draw: 12.9A @ 13.2V
- Output - Raw (Per Light): Max Spot 7,070 lumens/ Max Flood 14,060 lumens
- Output - Effective (Per Light): Max Flood 6,666 lumens/Max Combo 6,265 lumens/Max Spot 6,613 lumens
- Distance @ 1 Lux (Pair): Max Spot 1350m / 4429ft, Max Combo 1105m / 3625ft ,Max Flood 900m / 2953ft
- Ingress Protection: IP68 (3m depth)
- Operating Temperature (°C): -40°C to +80°C
- Operating Temperature (°F): -40°F to +176°F
- Colour Temperature: 5700 - 6200 Kelvin
- Weight: 3.8kg (8.4lbs)
- Dimensions (mm): 220mm (w) x 215mm (h) x 142mm (d)
- Dimensions (inches): 8.7" (w) x 8.5" (h) x 5.6" (d)
- Warranty: 3 years
